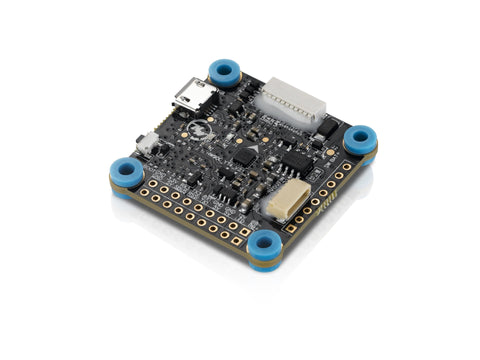

Hobbywing XRotor F4 G3 Flight Controller
-
Super-high Running Frequency
The STM32F405 MCU which features the powerful computing capability and super-high running frequency allows the FC to run the PID and gyro with higher frequency. DS -
DShot 150/300/600/1200, Oneshot125, Oneshot42, Multishot Modes Supported
Besides the latest Dshot 150/300/600/1200 mode, the FC also supports the regular PWM mode, Oneshot125 mode, Oneshot42 mode and Multishot mode.
-
TF-card Insertion Supported
Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
-
Onboard OSD Microchip
Onboard OSD microchip allows users to easily adjust various (OSD) parameters via the Betaflight/Cleanflight software.
-
BetaFlight/Cleanflight Firmware Ready
The FC which supports Betaflight/Cleanflight firmware & allows parameter adjustment via Betaflight /Cleanflight software is more applicable to FPV flying & racing.
-
Perfectly integrable with the Hobbywing 4IN1 ESC & VTX (video transmitter)
It’s easy to wire and install when pairing the FC with a Hobbywing 4-in-1 tower ESC & HOBBYWING VTX (Video Transmitter).
Specifications
|
Model
|
Micro F4 G3 | |
|
SKU
|
31003001 | |
| Application | FPV 130-300 | |
| FC Programming | supported | |
|
Programming via
|
Betaflight/Cleanflight and other configurator | |
| Compatible with (Modes) | PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc | |
| Compatible with (Transmitters) | PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc. | |
| OSD | Buit-in | |
| Voltage Monitoring | Supported | |
| Current Monitoring | Supported | |
| External Buzzer | Supported | |
| LED Control | Supported | |
| TF-card | Supported | |
| USB Port | MicroUSB | |
| size/ weight | 36*36mm / 6g |
