TBS SOURCE ONE V3 5INCH

$26.95

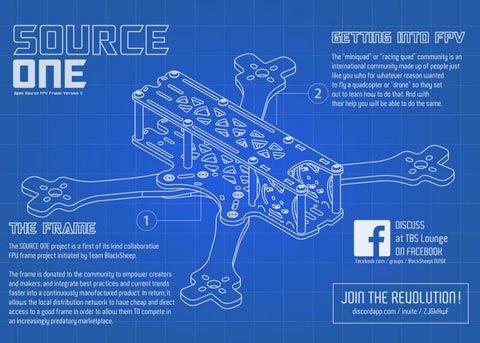

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

ABOUT THE PROJECT

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

GET INVOLVED!

Project discussion: https://discordapp.com/invite/ZJGkHwF
Project files: https://github.com/tbs-trappy/source_one
Interactive Manual (work in progress)
3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone
3D Printed Parts (STL) also avaialble on github!

PACKAGE CONTAINS:

1x Frame (Top, Bottom. Brace and 2x Camera plate, 4x Arms)
1x Screw & Standoff set

TECHNICAL SPECIFICATIONS:

Wheelbase 5": 226mm
Wheelbase 6": 263mm (not sold)
Wheelbase 7": 300mm
Top Plate: 2mm
Bottom Plate: 3mm
Standoff height: 30mm
Arm thickness 5": 4mm
Arm thickness 6": 4mm (not sold)
Arm thickness 7": 6mm
Stack Mounting: 30.5 × 30.5mm & 20 x 20
Weight 5": 145.1g

HARDWARE:

20x M3x10 allen screw
4x M3x14 allen screw
8X OD 5mm M3 30mm standoff
8x M3 press insert nut

RECOMMENDED PARTS:

The part recommendations are put together by our engineers and pilots. We strive for reliability and high quality in all of our selections, which may cost a bit extra but it allows you to enjoy the frame much more!
