The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.
RunCam Phoenix 2 - Joshua Edition
Joshua Edition UART Control Version.
RunCam Phoenix 2
Day&Night ƒ/2.0 big aperture freestyle camera.
· 1/2'' big image sensor · ƒ/2.0 big aperture · Excellent low light performance · Less digital image shimmer
Rich yet natural color.
With upgraded CPU and upgraded 1/2'' high-performance image sensor,
the RunCam Phoenix 2 produces vivid high-resolution pictures.
the RunCam Phoenix 2 produces vivid high-resolution pictures.
Excellent low light performance.
Thanks to the 1/2'' super global WDR image sensor, Phoenix 2's low light
performance is even better than the RunCam Eagle.
performance is even better than the RunCam Eagle.
ƒ/2.0 big aperture lens. Less red lens flare.
The high quality 6 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect.
less red lens flare and less purple fringing effect.
Less digital shimmer.
Compare to the RunCam Eagle, the RunCam Phoenix 2 has way
less digital shimmer and a much cleaner image.
less digital shimmer and a much cleaner image.
Low latency.
This camera is on the same latency level of the RunCam Eagle
and is wonderful for freestyle flying!
and is wonderful for freestyle flying!
Thanks Joshua for demonstrating his favorite camera Phoenix 2 Joshua Edition!
Dimensions
Package
-
1x Camera -
1x ABS bracket

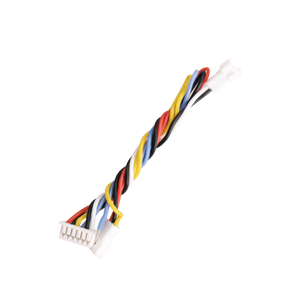

1x 6pin FPV silicone cable -
1x Set of screws
Manual
English
Parameters
| Model | RunCam Phoenix 2 | ||
| Image Sensor | 1/2" COMS Sensor | ||
| Horizontal Resolution | 1000TVL | ||
| Lens | 2.1mm (M12) FOV155° (4:3) | ||
| Screen Format | 4:3 / 16:9 switchable | ||
| Mirror/Flip | Available | ||
| Signal System | PAL / NTSC Switchable | ||
| S/N Ratio | >50dB (AGC OFF) | ||
| Electronic Shutter Speed | Auto | ||
| Auto Gain Control (AGC) | Auto | ||
| Min. Illumination | 0.001Lux@1.2F | ||
| WDR | Global WDR | ||
| Day/Night | Color/BW/EXT/Auto | ||
| Menu Control | Cable Control | ||
| Power | DC 5-36V | ||
| Current |
|
||
| Housing Material | ABS | ||
| Net Weight | 9g | ||
| Dimensions | 19mm*19mm*20mm |
