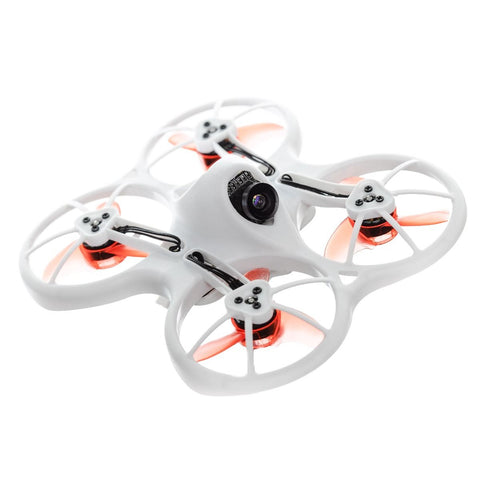

Emax TinyHawk
Key Features:
-
Key Features:
- 75mm Indoor racing drone
- 08025 brushless motor with durable ball bearing for increase flight and low maintenance
- Durable polypropylene plastic frame with propeller guards
- Motor beeper function. Find your tinyhawk after a crash
- Speeds up to 56kph
- Up to 4 minutes flight time on single battery
- Fast F4 Processor for smooth stable flight characteristics
- MPU6000 gyro for vibration free operations
- Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces
- 25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles
- Smart Audio function to change VTX channel via your transmitter
- OSD settings control to customize flight feel
- Pre-tuned from factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel
- Plug in type motors for easy maintenance
- 1s High Voltage (HV) 450mah lipo included
- Frsky compatible D8 receiver built in to FC
- Custom carbon fiber themed carrying case
Frame Properties:
Size: 75mm motor to motor L 110mm x W 95mm x H 39mm
Dry Weight: 29g
All Up Weight: 42g with 450mah 1s Battery
Frame Material: Polypropylene
Propeller Properties:
Diameter: 40mm
Blades: 3
Pitch: 23mm
Weight: 0.5 g
Motor Properties;
Stator: 8mm x 2.5mm (08025)
Kv: 15000kv
Weight: 2.5g
Bearing Size: Φ1.5*Φ4*2mm
Shaft Diameter: Φ1.5mm
Propeller Mount: Press Fit Over Bell
Main PCB:
Flight Controller: F4（MATEKF411 firmware）
ESCs: 4in1 3A
Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)
Battery Connector: JST-PH2
Camera and VTX:
VTX Power: 25mw
Channels: 37CH
Camera Properties: 600TVL CMOS
Smart Audio
Battery:
Voltage: 1s 4.35v HV
Capacity: 450 mAh
Discharge rating: 80c/160c
Included in package:
- Light weight soft carry case, with carbon fiber look
- Tiny Hawk indoor flying drone
- USB High Voltage capable 4 port USB Charger
- 1s High Voltage (HV) 450mah lipo battery.
