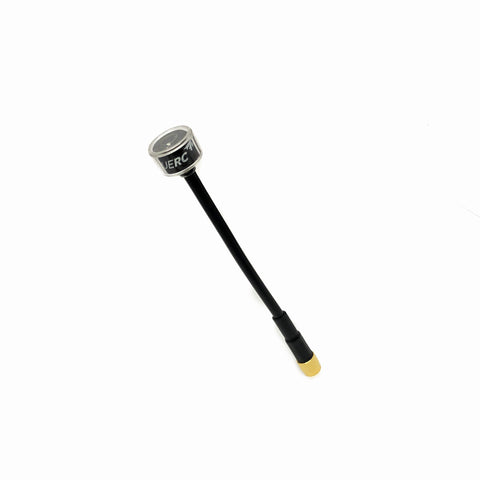

TrueRC O.C.P Omnidirectional Antenna - Long - Straight SMA - RHCP

TrueRC O.C.P Omnidirectional Antenna - Long - Straight SMA - RHCP

  • $12.99


The OCP 5.8 is our new everyday omni antenna. Proven design, great signal, durable and look amazing.

DESCRIPTION

The OCP 5.8 is our new everyday omni antenna. Proven design, great signal, durable and look amazing. Available in all popular connector configurations.

FEATURES

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
  • Clear indication of polarization direction
  • Excellent axial ratio and efficiency
  • Heavy-duty coax cable that can be bent to shape
  • Knurled True-SMA for easy tightening

SPECS:

  • Gain: 1.6dBic
  • Cross-Polar Rejection: -10 to -20dB, (3.2%)
  • Bandwidth: 5.6GHz-6.0GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.2:1
  • Weight: 9.8 g
  • Dimensions(head): 16.5mm dia. X 10.7mm height.
  • Length:123mm
  • Cable: Heavy-duty semi-rigid RG402 coax.
  • Connector: Reinforced True-SMA male.
