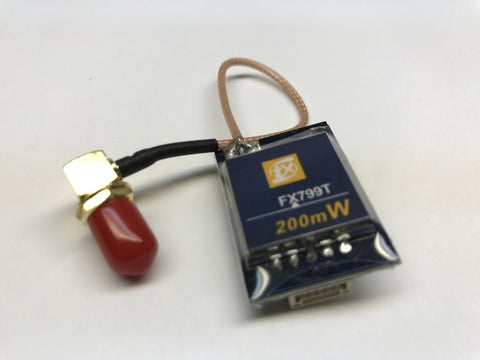

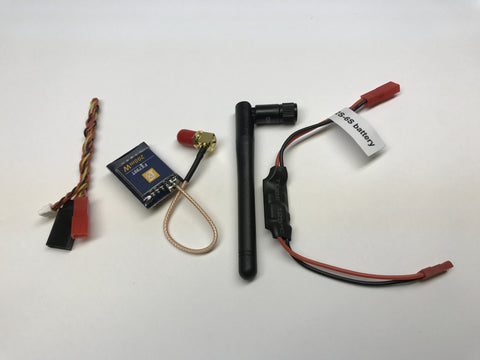

FX799T 200mw Video Transmitter (SMA Pigtail)

  • $9.99
  • Save $30


Great, reliable, standby. With SMA pigtail 200mw!

Features

  • 40 channels: Covers 5 Bands
  • Intuitive and easy to use button and LEDs for frequency selection
  • Provides 5v power output for FPV cameras
  • Small sized and light weight
  • Transmitter frequency: 5658-5925MHz with 200mW power output
  • Transmitting distance >  1000m (open area)
  • SMA Antenna connector
  • Dimensions: 32*22*9mm (not including SMA adapter)
  • Audio: Includes on board microphone

Specifications:

  • Operating Voltage: 7 - 20V
  • Supply current: 50 mA
  • Operating Temperature: -10 +85 C
  • Video Band Width: 5-6 MHz
  • Audio carrier Frequency: 6.5 MHz
  • Video Input Level: 0.8,1.0,1.2 Vp-p
  • Video Input Impedance: 75 Ohm
  • Audio Input Level: 0.8 ,2.0 Vp-p
  • Audio Input Impedance: 10K Ohm
  • Weight: 7.5g (without antenna)
  • Antenna Connector: SMA Female Connector
  • Video Format: NTSC/PAL
  • Frequency Selection: Single push to change CH, push and hold for 2 seconds to change FR
