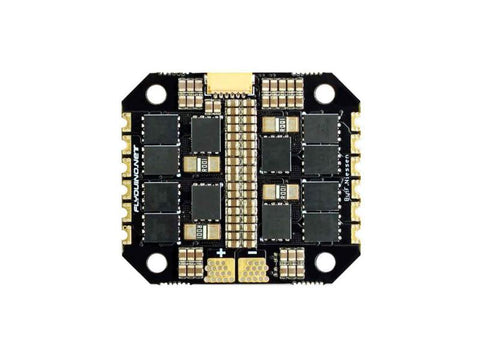

KISS ESC 2-5S 25A 4in1 (40A limit) - 32bit brushless Motor

SPECIFICATION

• 32-Bit-ARM Cortex M4 MCU @ 80 MHz
• Telemetry capability (voltage, current, temperature, rpm)
• Over current protection (measures the current and reduces it to max 40A)
• Over temperature protection (reduces the max power if hotter then 100°C)
• sinHybrid :: Sinwave/BackEMF Hybrid Commutation for smoother running.)
• Dshot 2400 (Full resolution of 2000 steps takes only 6.5μs).
• Supports all common Dshot commands like turtle mode, 3D mode and rotation direction change.
• Expanded adaptive auto timing (7.5-30° advance on each commutation),
• For Race Multicopters (25A continuous also with weak cooling),High max. RPM (500.000ERpm, 71.400Rpm with a 14Pole Motor)
• Small size (37.5 x 42.5 mm) 3cm hole distance with 3,4mm size to stay full compatible
• Accurate RPM control (2000 steps using Dshot)
• No additional capacitor needed for 3-5S.
• Very fast throttle response, Linear throttle response, Active freewheeling (low diode losses)
• Regenerative braking
• Dshot 100-2400, Oneshot42, Oneshot125 and (25 - 500 Hz) PWM get autodetected.
• Supports FrSky Sbus, Graupner SumD, TBS CROSSFIRE and Multiplex SRXL, S-Port, Graupner HOTT, TBS CROSSFIRE and Sensorbus
• Operating voltage 6 - 24V (2-5s)
• Maximum continuous current 25A, instantaneous maximum current 40A, actively limited
• 600000 ERPM maximum rotation field speed (useage up to 500000 recommended)
• 6 Layer 70µm copper PCB where almost all of the layers can be used for the current as the logic parts sits on a seperate PCB
• All in and outputs are protected against over (~30V) and undervoltage(~-30V) but are still 3,3 and 5V compatible
• Modern smart gate driver.
• 1980µF 25V ceramic capacitors onboard
• Connection Cable for KISS FC is not included in the package
