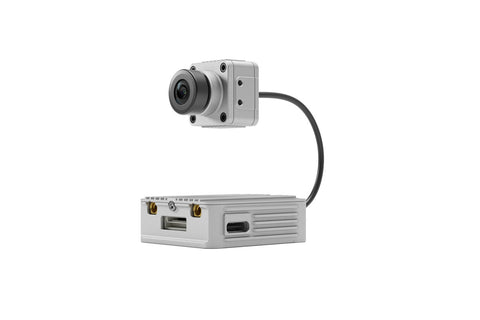

DJI FPV Air Unit

The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.

The air unit may become hot during or after operation.
DO NOT touch the air unit before it cools down.
DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode.
Keep the antennas of the air unit at least 40 mm apart.
Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.

DJI FPV Air Unit (with camera and four M2 screws) × 1
Three-in-one cable × 1
Antenna (MMCX elbow) × 2

Weight
Air Unit (Camera included): 45.8 g
3.9 g (MMCX elbow each)

Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Camera: 27.4 × 21.1 × 20.1 mm
Coaxial Cable: 100 mm

Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm

Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms

Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Sensor: 1/3.2'' CMOS; Effective Pixels: 4 M
Lens: 2.1 mm, f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150°(D); 122°(H); 93°(V)
Dimension: 22.1 × 21.1 × 20.1 mm
Weight: 8.2 g
