Runcam Micro Swift 3 V2

  • $26.99
  • Save $8

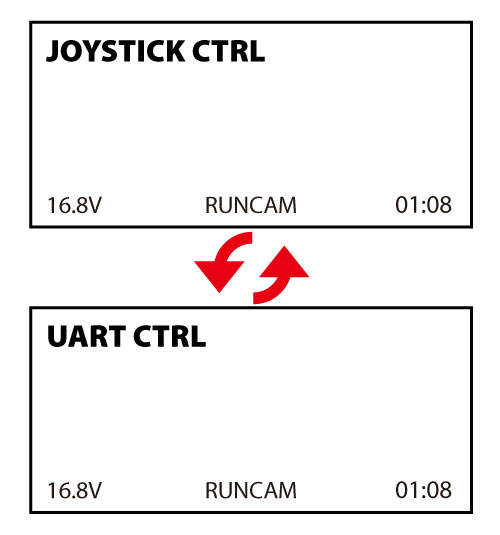

Switch B/W UART and Joystick

How to switch?

The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.
Short the two camera control pins
RunCam Micro Swift 3
Then power on, camera will auto switch between the two modes
RunCam Micro Swift 3 RunCam Micro Swift 3
The mode can be saved after power off. After switching to the desired mode, please unplug the short-circuit cable.
UART Control works with Flight Controllers:
BetaFlight 3.3 or above / ButterFlight 3.4 or above / CleanFlight 2.2 or above
Global Shutter NO Jello
RunCam Micro Swift 3

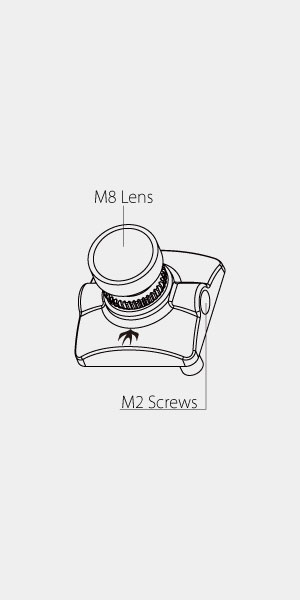

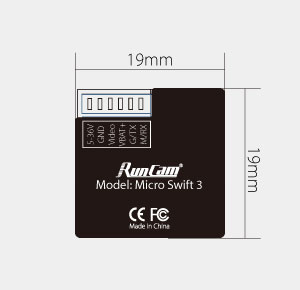

Dimensions

    • RunCam Micro Swift 3
    • RunCam Micro Swift 3
    • RunCam Micro Swift 3 RunCam Micro Swift 3

Package

  • RunCam Micro Swift 3 Package
    1x Camera
  • RunCam Micro Swift 3
    1x 1928 ABS bracket
    RunCam Micro Swift 3
    1x 6pin FPV silicone cable
  • RunCam Micro Swift 3
    1x Set of screws
    RunCam Micro Swift 3
    1x Manual
Parameters
Model RunCam Micro Swift 3
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL
Lens
2.1mm (M8) FOV160° 2.3mm(M8) FOV 145°
Signal System PAL / NTSC
Integrated OSD Yes
One Touch Scene Setting Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
S/N Ratio >60dB (AGC OFF)
Electronic Shutter Speed PAL: 1/50~100,000; NTSC: 1/60~100,000
Auto Gain Control (AGC) Yes
Min. Illumination 0.01Lux@1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color/Auto/B&W
Menu Control Joystick Control / UART Control Switchable
Power DC 5-36V
Current 60mA@12V / 120mA@5V
Net Weight 6g(M8)
Dimensions 19mm*19mm*18mm

Download

UserManual
Manual
