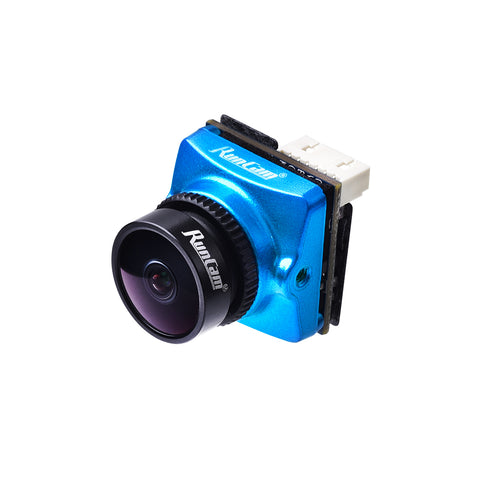

RunCam Phoenix - Oscar Liang Edition

  • $37.99


RunCam Phoenix Oscar Edition
Joystick Control & UART Control Switchable
The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.
Short the two camera control pins
RunCam Phoenix Oscar Edition
Then power on, camera will auto switch between the two modes
RunCam Phoenix Oscar Edition RunCam Phoenix Oscar Edition
The mode can be saved after power off. After switching to the desired mode, please unplug the short-circuit cable.
UART Control works with Flight Controllers:
BetaFlight 3.3 or above / ButterFlight 3.4 or above / CleanFlight 2.2 or above

Dimensions

RunCam Nano

Package

  • RunCam Phoenix Oscar Edition Package
    Camera*1
  • RunCam Phoenix Oscar Edition
    1928 ABS bracket*1
    RunCam Phoenix Oscar Edition
    6pin FPV silicone cable*1
  • RunCam Phoenix Oscar Edition
    Set of screws*1
    RunCam Phoenix Oscar Edition
    Manual*1

Parameters

Model RunCam Phoenix Oscar Edition
Image Sensor 1/3" 120dB WDR Sensor
Horizontal Resolution 1000TVL
Lens 2.5mm (M12) FOV140° (4:3) / 1.8mm (M12) FOV160° (4:3)
Screen Format 4:3 / 16:9 switchable
Mirror/Flip Available
Signal System PAL / NTSC Switchable
Integrated OSD Yes
S/N Ratio >50dB (AGC OFF)
Electronic Shutter Speed Auto
Auto Gain Control (AGC) Auto
Min. Illumination 0.01Lux@1.2F
WDR D-WDR
Day/Night Color/Auto/B&W
Menu Control Cable Control / Remote Control Switchable
Power DC 5-36V
Current
220mA@5V 120mA@12V
Housing Material ABS
Net Weight 9g
Dimensions 19mm*19mm*20mm

Download

UserManual
Manual
