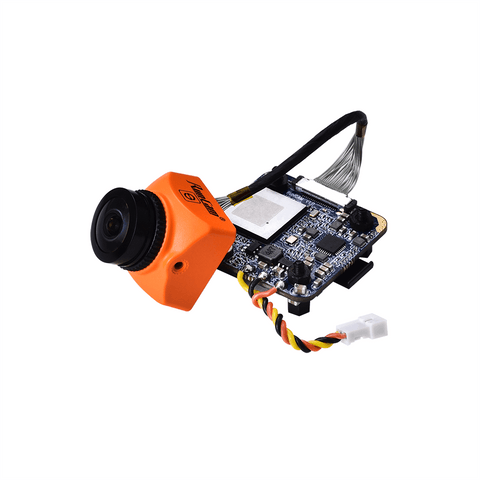

Runcam Split 3 Micro - ( 20 x 20 )

  • $69.99


SPLIT 3 MICRO & NANO
  • 1080P/60fps HD recording & WDR FPV camera
  • Low latency TV-OUT (40MS)
  • Anti-drop SD card
  • Power-off protection for video files
  • Wide voltage (5-20V)
  • FPV aspect ratio 16:9/4:3 switchable
NEW FEATURES
Stronger flexible ribbon cable
Optimize TV-OUT interference to reduce ripple
RunCam Split 3 Micro & Split 3 Nano
MODULAR DESIGN
Replaceable lens manual focus supported
OPTIMIZE TV-OUT INTERFERENCE TO REDUCE RIPPLE
RunCam Split 3 Micro & Split 3 Nano
Old versionNew version
EASY INSTALLATION
Standard mounting bracket    Mounting Dimension:20*20mm
SD card protector
RunCam Split 3 Micro & Split 3 Nano
FPV (4:3 / 16:9 auto adaptation)
HD recording (16:9)
RunCam Split 3 Micro & Split 3 Nano

Split 3 Micro Package

  • RunCam Split 3 Micro & Split 3 Nano
    1x Camera
  • RunCam Split 3 Micro & Split 3 Nano
    1x 19 to 28 bracket
  • RunCam Split 3 Micro & Split 3 Nano
    1x Plastic cover
  • RunCam Split 3 Micro & Split 3 Nano
    1x 3PIN 1.25 JST Silicone Cable
  • RunCam Split 3 Micro & Split 3 Nano
    1x Set of M2 screws
  • RunCam Split 3 Micro & Split 3 Nano
    1x Manual

Split 3 Nano Package

  • RunCam Split 3 Micro & Split 3 Nano
    1x Camera
  • RunCam Split 3 Micro & Split 3 Nano
    1x 14 to 19 bracket
  • RunCam Split 3 Micro & Split 3 Nano
    1x Plastic cover
  • RunCam Split 3 Micro & Split 3 Nano
    1x 3PIN 1.25 JST Silicone Cable
  • RunCam Split 3 Micro & Split 3 Nano
    1x Set of M2 screws
  • RunCam Split 3 Micro & Split 3 Nano
    1x Manual

Split 3 Micro Dimensions

RunCam Split 3 Micro & Split 3 Nano

Dimension including the 19 to 28 bracket

RunCam Split 3 Micro & Split 3 Nano

Parameters

Model RunCam Split 3 Micro RunCam Split 3 Nano
Field of View(FOV) Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution 1080@60fps/1080@50fps/1080@30fps/720@60fps
Video File Format MOV
Image Resolution 2 MP
TV Mode NTSC (720*480)/PAL (720*576) Switchable
Interface JST 1.25mm / UART
Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
Hole Distance of Installation 20*20mm
PCB Size 29*29mm
Lens Module Size 19*19mm 14*14mm
Lens Specs M12 M8
Power Input DC 5-20V(Non-direct power supply from battery. Powered direcly with battery will generate surges and burn the camera.)
Working Current 650mA @5V / 270mA @12V
Weight 14g 10.5g
