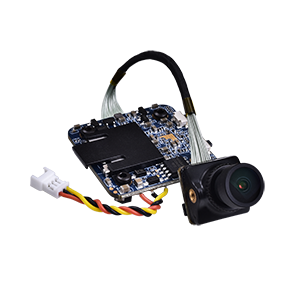

Runcam Split 3 Micro - ( 20 x 20 )
SPLIT 3 MICRO & NANO
- 1080P/60fps HD recording & WDR FPV camera
- Low latency TV-OUT (40MS)
- Anti-drop SD card
- Power-off protection for video files
- Wide voltage (5-20V)
- FPV aspect ratio 16:9/4:3 switchable
NEW FEATURES
Stronger flexible ribbon cable
Optimize TV-OUT interference to reduce ripple
MODULAR DESIGN
Replaceable lens manual focus supported
OPTIMIZE TV-OUT INTERFERENCE TO REDUCE RIPPLE
Old versionNew version
EASY INSTALLATION
Standard mounting bracket Mounting Dimension:20*20mm
SD card protector
SD card protector
FPV (4:3 / 16:9 auto adaptation)
HD recording (16:9)
Split 3 Micro Package
-
1x Camera -
1x 19 to 28 bracket -
1x Plastic cover -
1x 3PIN 1.25 JST Silicone Cable -
1x Set of M2 screws -
1x Manual
Split 3 Nano Package
-
1x Camera -
1x 14 to 19 bracket -
1x Plastic cover
-
1x 3PIN 1.25 JST Silicone Cable
-
1x Set of M2 screws
-
1x Manual
Split 3 Micro Dimensions
Dimension including the 19 to 28 bracket
Parameters
| Model | RunCam Split 3 Micro | RunCam Split 3 Nano |
| Field of View(FOV) | Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3) | |
| Video Resolution | 1080@60fps/1080@50fps/1080@30fps/720@60fps | |
| Video File Format | MOV | |
| Image Resolution | 2 MP | |
| TV Mode | NTSC (720*480)/PAL (720*576) Switchable | |
| Interface | JST 1.25mm / UART | |
| Max Micro SD Card Supported | 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) | |
| Hole Distance of Installation | 20*20mm | |
| PCB Size | 29*29mm | |
| Lens Module Size | 19*19mm | 14*14mm |
| Lens Specs | M12 | M8 |
| Power Input | DC 5-20V(Non-direct power supply from battery. Powered direcly with battery will generate surges and burn the camera.) | |
| Working Current | 650mA @5V / 270mA @12V | |
| Weight | 14g | 10.5g |
