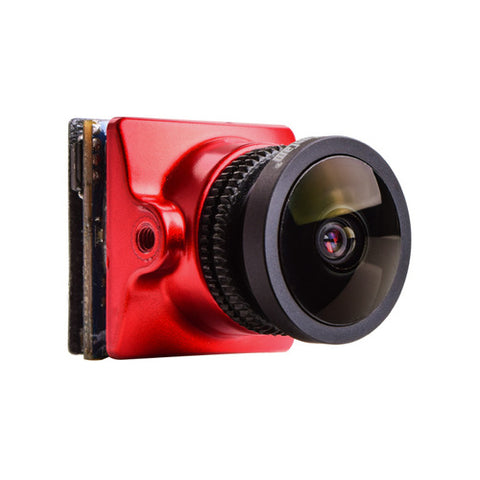

RunCam Micro Eagle
123456
WDR level 1-6 available
Mirror & Flip image available
Dimension
Package
-
1x Camera -
1x Aluminum bracket -
1x Set of screws -
1x OSD Key-press Board -
1x 3pin FPV silicone cable -
1x Manual
Parameters
| Model | RunCam Micro Eagle | ||
| Image Sensor | 1/1.8" CMOS Sensor | ||
| Horizontal Resolution | 800TVL | ||
| FOV |
|
||
| Screen Format | 16:9 / 4:3 Switchable on OSD menu | ||
| Signal System | NTSC / PAL Switchable on OSD menu | ||
| Mirror/Flip | Yes | ||
| S/N Ratio | >50dB | ||
| Electronic Shutter Speed | Auto | ||
| Max Gain | 1-9 Level | ||
| Min. Illumination | 0.001Lux@1.2F | ||
| WDR | Level 1-6 available | ||
| Day/Night | Auto/External/Color/B&W | ||
| Power | DC 5-36V | ||
| Current | 200mA@5V / 90mA@12V | ||
| Housing Material | ABS | ||
| Net Weight | 8.5g | ||
| Dimensions | L19mm*W19mm*H22mm |
Download
User Manual
